Cold and freezer storage

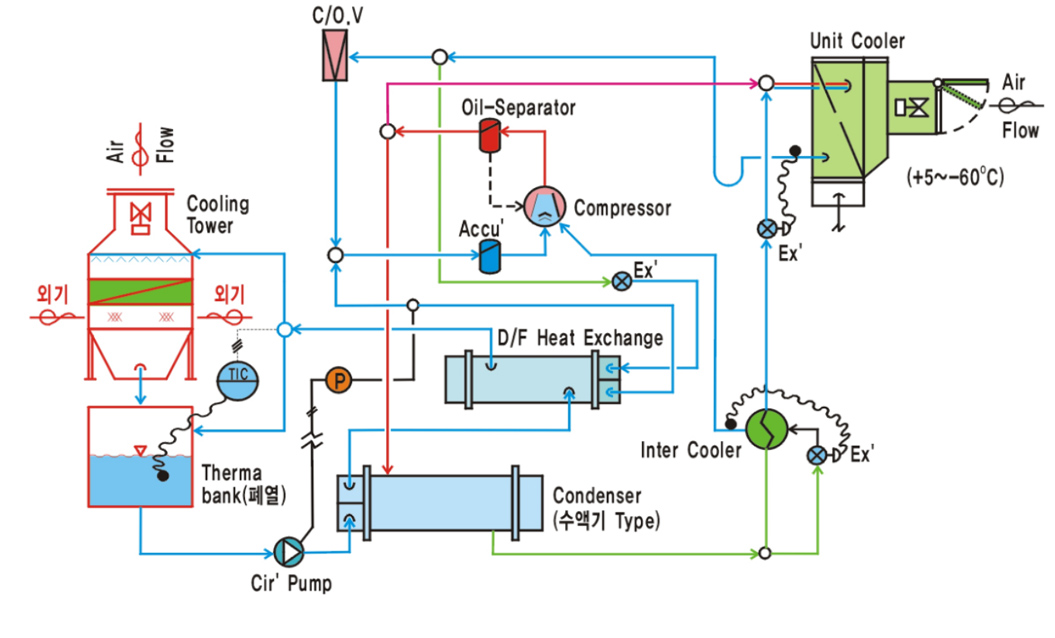

Hot Gas Defrost Refrigeration and Refrigeration System Using Water-cooled Waste Heat Source Thema Bank Heat Source[Registered with patents]

Since the cooling tower waste heat source is used as a source of re-heated heat when defrosted, it is feasible to reduce carbon emissions and operating costs with energy saving. Inside the Unit Cooler East Wing, hot gas refrigerant in the temperature from +90°C to +100°C is directly circulated to perform defrosting in a short amount of time while reducing energy and installation costs.

Characteristics

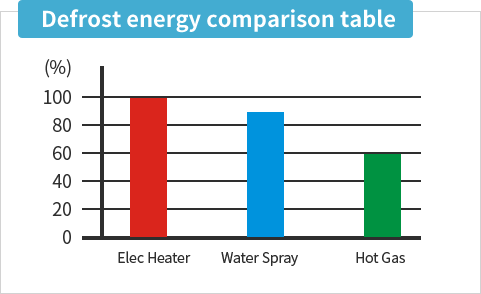

  • Traditional heater defrosting, hot water and spray defrosting generally improve the environment by drastically reducing energy costs and reducing
  • carbon emissions.
    Self-diagnostic defrosting system based on differential pressure damper
  • control signal saves energy
    Prevention of contamination due to hot and spray defrosting and preven
  • tion of short circuit fire due to electric defrosting Compressor capacity control according to cooler surface temperature when defrosted (50%, 75%, 100%)
