Cold and freezer storage

Ultra low temperature freezer (three-way dual compression)

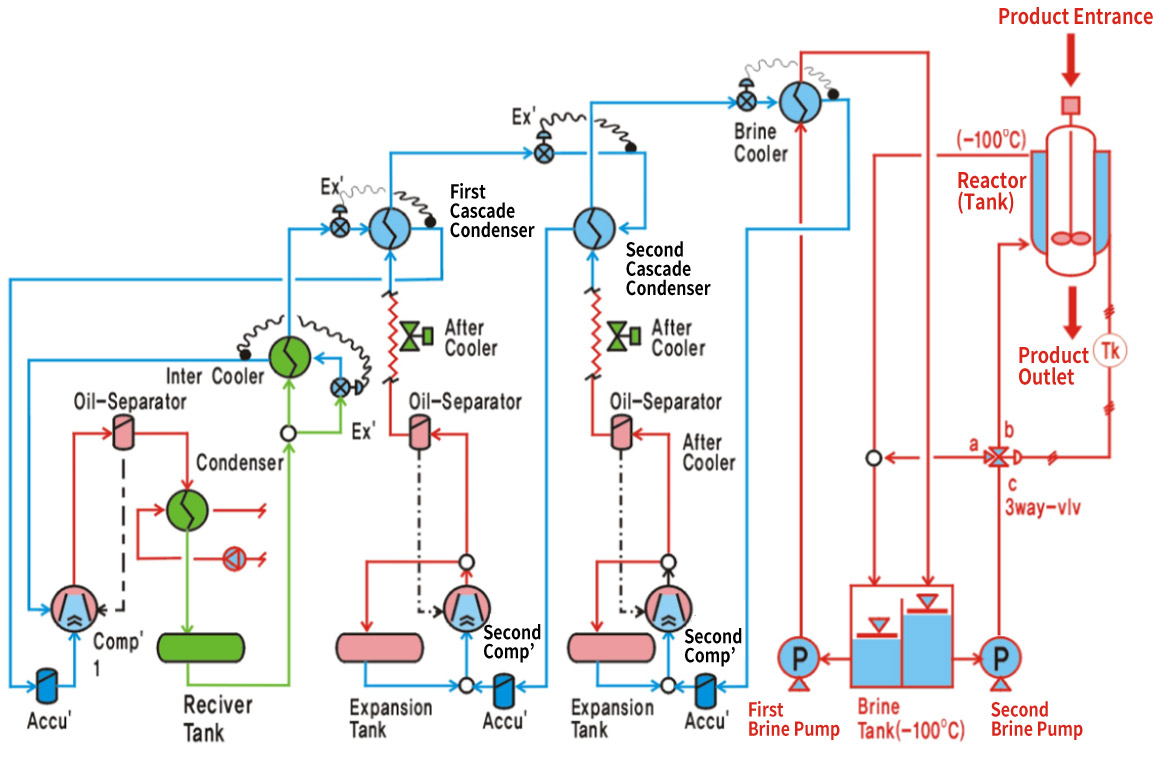

The three-way refrigeration system consists of a cascade condenser between the refrigerant systems using R410A 404A refrigerant for 1st and 2nd layer compression, 2nd layer R-13, 3rd layer R-14, and 3rd stage refrigerant. By constructing a three-way freezing system, the temperature of the cryogenic temperature is -100°C. The 3-way cryogenic system unit can control the recovery of organic solvents from the reactionary or the heat generated by the cooler.

Characteristics

  • Easy to control ultra-precision temperature (Brain proportional control)
  • Applicable to organic solvent liquefaction and recovery devices
  • 3-won refrigeration system requires empirically valid technology
