Cold and freezer storage

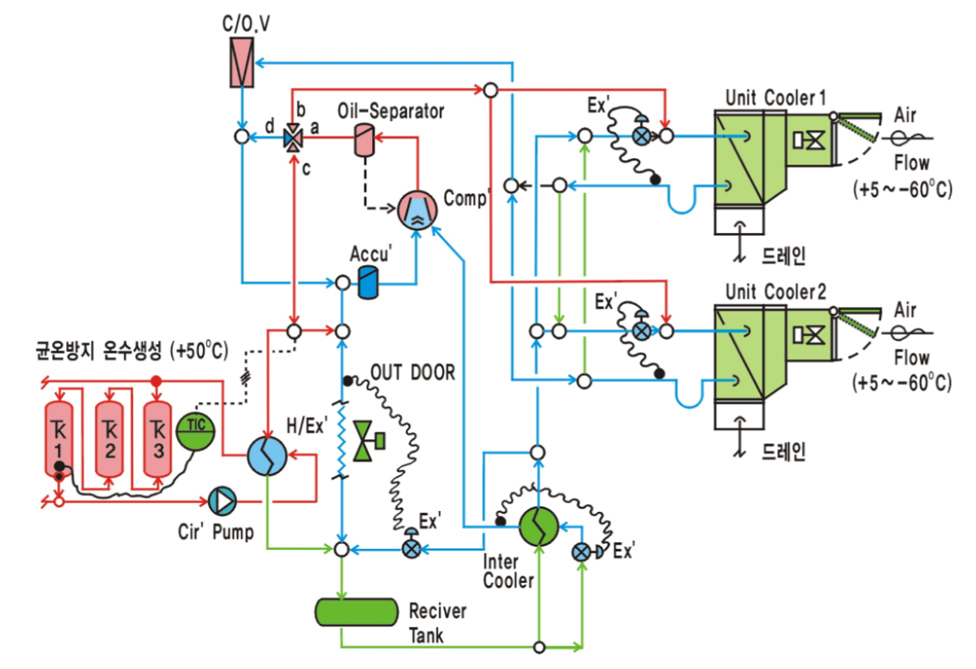

Defrosting hot gas from pressure difference damper control, prevention of consistent temperature, generation of hot water, freezing and refrigerating system [Registered with patents]

Hot water in the temperature from +50°C to 60°C is generated when refrigeration and refrigeration are operated, or the energy saving system is provided through the multi-function of hot water generation. In addition, self-diagnosis hot gas conduction with differential pressure damper control signals can result in additional energy savings. As a multi-unit cooler is formed in one freezer, one cooler is defrosted, and the other cooler forms defrosted cycle, the temperature deviation of the freezer is minimized.

Characteristics

  • Differential pressure damper control self-diagnostic defrost system configuration to reduce energy
  • Prevention of contamination in the refrigeration and refrigeration rooms due to hot water and spray defrosting and prevention of electric shock due to general defrosting
  • Compressor capacity control operation according to cooler surface temperature control when deflated (50%, 75%, 100%)
