Cold and freezer storage

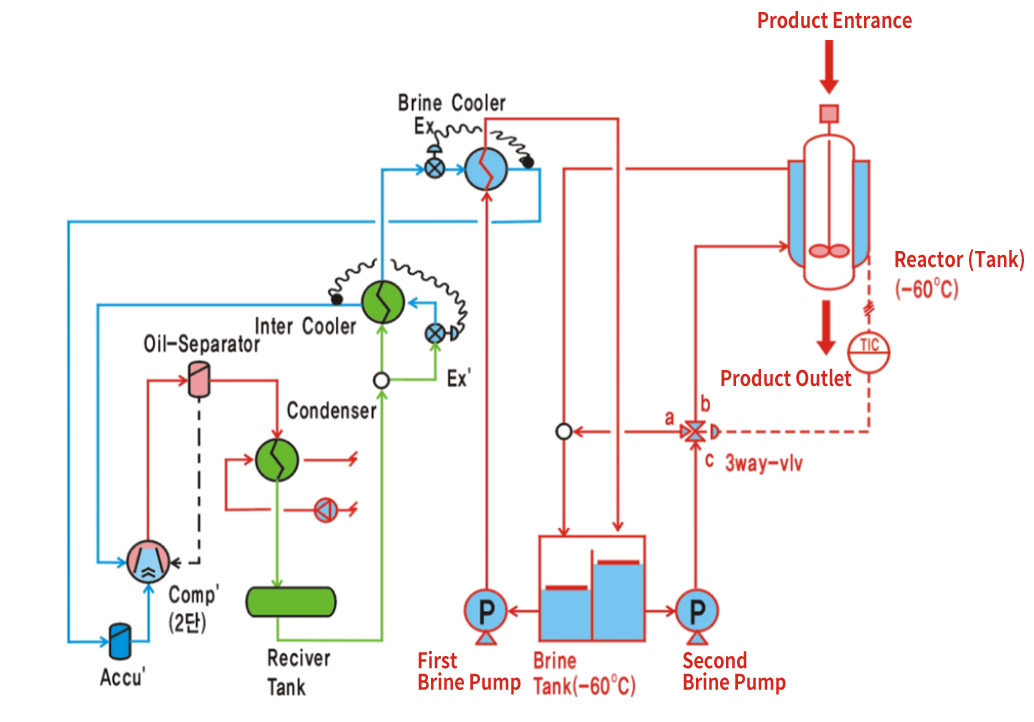

Reactor thermal removing device (two layers compressing freezing system)

It is a two-stage compressed freezer that acts as an up, down, and down with one Comp as a cooling The brine used as a secondary refrigerant can be cooled down to -60°C and circulated in the reaction tank (tank) to minimize the load of the freezer to perform stable cooling functions. In addition, it can be applied to cooling devices such as frozen storage of processed agricultural, water and livestock products, and can also be applied to hydrogen charging stations, gas generating inhibitors, and brine cooling devices for hydrogen vehicles

Characteristics

  • Easy to control ultra-precision temperature (Brain proportional control)
  • Easy for cooling systems with large cooling load variations.
